Selecting Fixed Mount Hardware for use in Pantry or Storage areas
Use the chart below to calculate the hardware you’ll need for each shelf created.
Select shelf lengths from the numbers across the top (dimensions in between should always be rounded up).
The column gives you the amount of hardware you’ll need for EACH shelf.
| Image | Product Name | Configuration | 2’ | 3’ | 4’ | 5’ | 6’ | 7’ | 8’ | 9’ | 10’ |
 | End Caps – 203 Use quantities shown for each shelf
| Use 8 x 203 for 12" CloseMesh (7402)
Use 10 x 203 for 16" CloseMesh (7318) |
 | Wall Bracket – 974 Use to attach shelf to side wall | Wall – Wall Wall – Open Open – Open | 2 1 0 | 2 1 0 | 2 1 0 | 2 1 0 | 2 1 0 | 2 1 0 | 2 1 0 | 2 1 0 | 2 1 0 |
 | Wall Clip – 991 Use one 2" from the ends of each shelf & no more than 12” apart | Wall – Wall Wall – Open Open – Open | 3 3 3 | 4 4 4 | 5 5 5 | 6 6 6 | 7 7 7 | 8 8 8 | 9 9 9 | 10 10 10 | 11 11 11 |

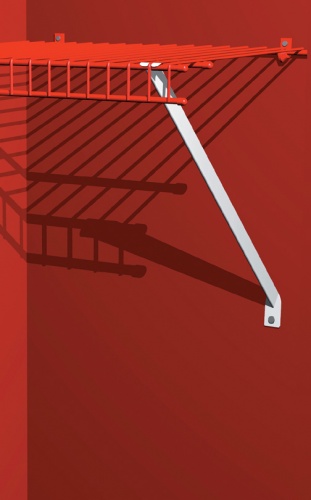

 | Shelf Support Bracket – 1164 Use every 3’ along length of shelf & at each ‘open end’ of 12” deep shelving | Wall – Wall Wall – Open Open – Open | 0 1 2 | 0 1 2 | 1 2 3 | 1 2 3 | 1 2 3 | 2 3 4 | 2 3 4 | 3 4 5 | 3 4 5 |
| Shelf Support Bracket – 1166 Use every 3’ along length of shelf & at each ‘open end’ of 16” deep shelving | Wall – Wall Wall – Open Open – Open | 0 1 2 | 0 1 2 | 1 2 3 | 1 2 3 | 1 2 3 | 2 3 4 | 2 3 4 | 3 4 5 | 3 4 5 |
 | Shelf Support Pole – 1009 Use to install a stack of 3 or more shelves.
Use every 3’ along the length of the shelves & at each ‘open end’ | Wall – Wall Wall – Open Open – Open | 0 1 2 | 0 1 2 | 1 2 3 | 1 2 3 | 1 2 3 | 2 3 4 | 2 3 4 | 3 4 5 | 3 4 5 |

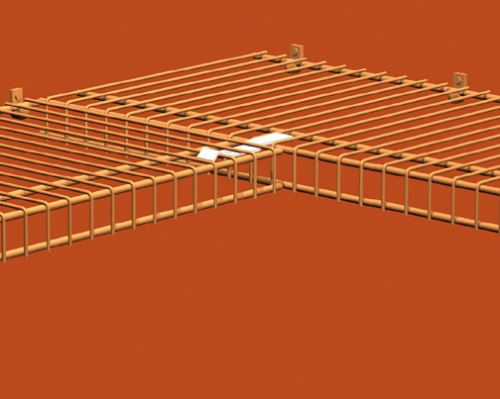

 | Corner Support – 120 For use when creating an ‘L’ or ‘U’ shape configuration | Use one to support two shelves butted together at a corner.
Don’t forget to order one 1164 or 1166 for each corner too. |
